Description

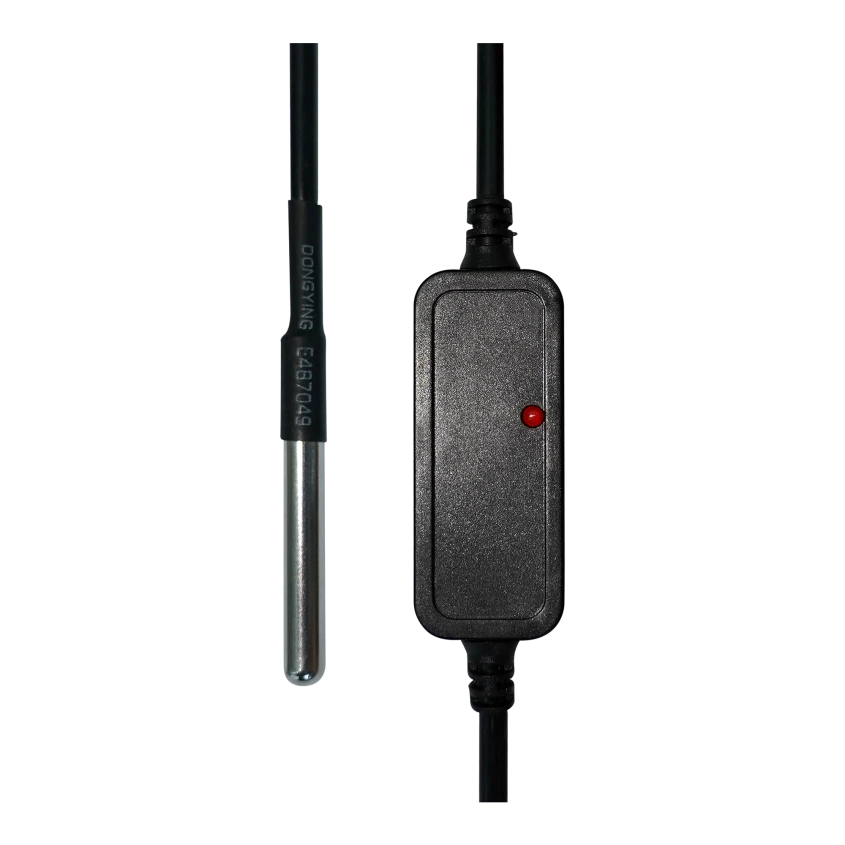

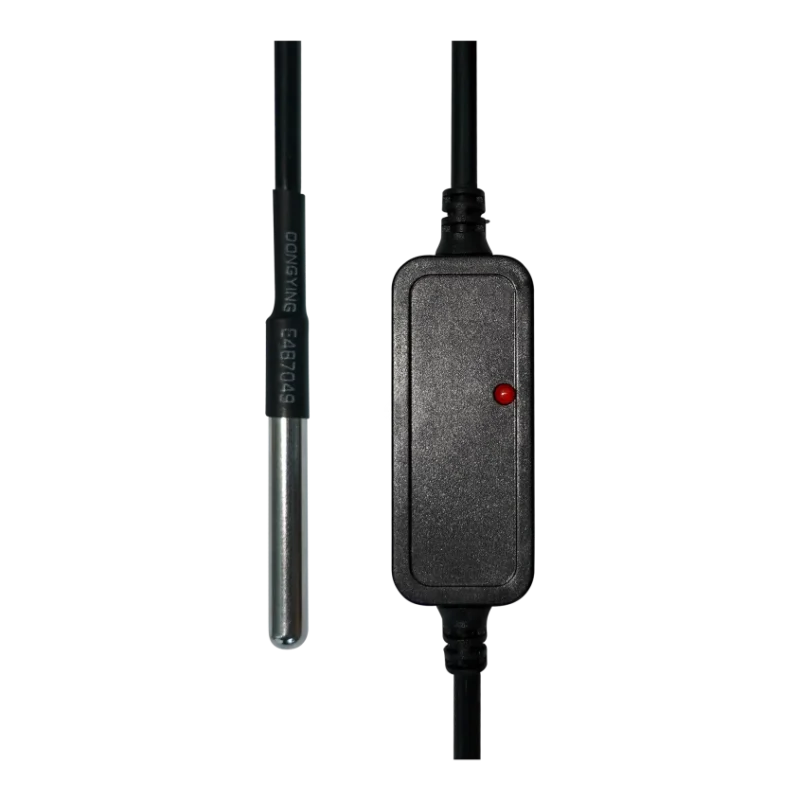

Water Temperature Sensor with RS485 or 4–20 mA. Supply water-temperature data for irrigation storage, fertigation and commercial recirculating systems.
Specifications
The table describes the listed configuration. Confirm the ordered range, output variant, accessories and acceptance criteria before procurement.
| Parameter | Specification |
|---|---|
| Power | 9–24V DC |
| Listed sensing range | −55 to 80°C |
| Resolution | 0.1°C |
| Listed accuracy | ±0.5°C |
| Output variants | RS485 Modbus or 4–20 mA |
Selection and System Integration
Confirm the probe’s wetted materials, sealing arrangement and permitted medium temperature for the ordered version. A sensing-element range is not evidence that every cable, connector or complete assembly may operate throughout that range.
Installation and Application Notes
Position the probe in representative circulating liquid and allow readings to stabilize during verification. Avoid direct contact with a tank heater when measuring bulk solution temperature. Confirm compatibility with nutrient solutions and cleaning agents.
Sample Evaluation
Before a larger order, check the selected sample against the agreed specification using representative operating conditions. Confirm wiring, power, output units and controller communication, then record reference measurements and any configuration changes. Agree on the required documents, packing and replacement components as part of the quotation.
Application FAQ
Does this sensor heat or cool the solution?
No. It provides temperature measurements to a separate monitoring or control system.
Request a Project Quotation
For water temperature sensor selection, send the following details so Wewin Smart Agri can help match the configuration and coordinate sample evaluation and a batch quotation:
- Normal/maximum liquid temperature and chemistry
- Immersion depth, probe mounting and cable length
- Output, controller input and sample quantity
- Destination country, estimated order quantity and required delivery schedule
Send your application requirements for configuration review and quotation. Related project information is available in our agricultural sensor range.
