Description

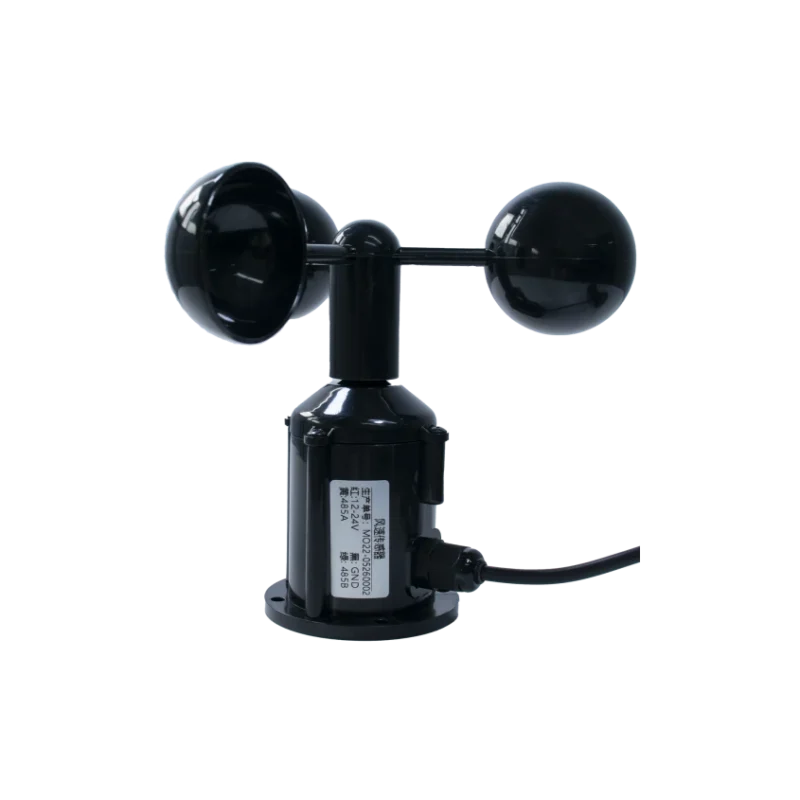

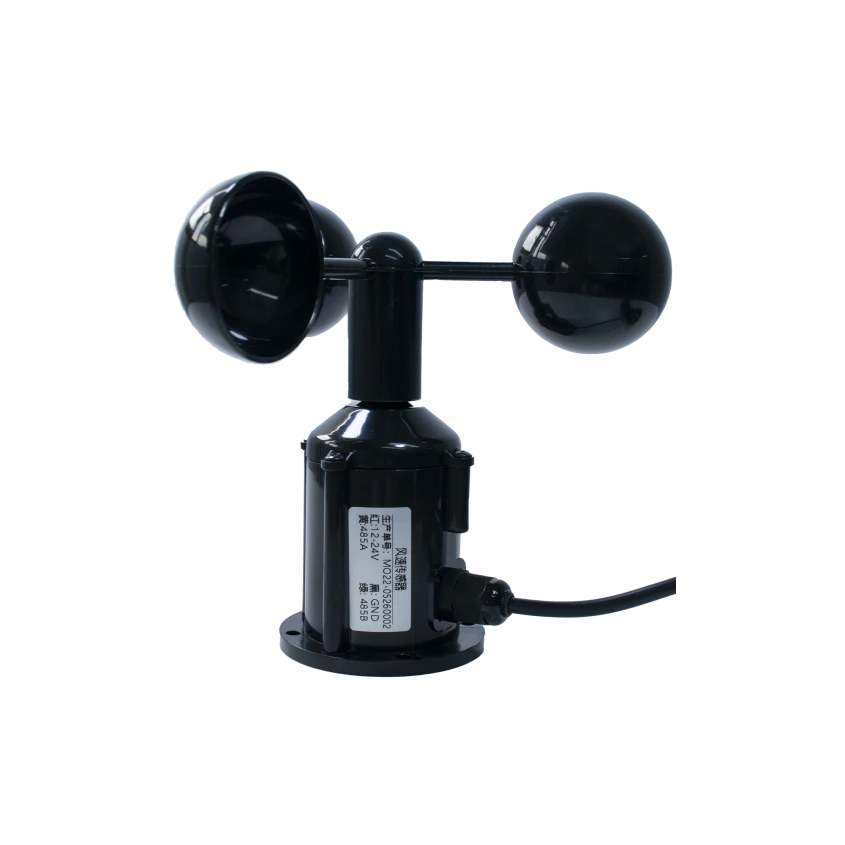

RS485 Wind Speed Sensor for Agricultural Monitoring. Add wind-speed measurement to agricultural weather monitoring and irrigation management projects.
Specifications
The table describes the listed configuration. Confirm the ordered range, output variant, accessories and acceptance criteria before procurement.
| Parameter | Specification |
|---|---|
| Power variants | 12–24V DC for the pictured configuration; confirm other variants |
| Measuring range | 0–45 m/s |
| Resolution | 0.1 m/s |
| Starting speed | ≤0.5 m/s |
| Listed accuracy | ±(0.3 + 0.03V) m/s, V is wind speed |
| Operating temperature | −30 to 80°C |
| Output | RS485 Modbus |
Selection and System Integration
Select a supply variant and mounting height appropriate to the application. Check whether the controller requires instantaneous readings, averages or gust values; the sampling and averaging rules must be established during integration.
Installation and Application Notes
Mount the cups clear of surrounding obstructions and inspect moving parts during routine maintenance. A single wind reading does not establish safe spraying conditions or predict irrigation distribution without site-specific assessment.
Sample Evaluation
Before a larger order, check the selected sample against the agreed specification using representative operating conditions. Confirm wiring, power, output units and controller communication, then record reference measurements and any configuration changes. Agree on the required documents, packing and replacement components as part of the quotation.
Application FAQ
Does it also measure wind direction?
No. A separate wind-direction sensor is needed if direction data is required.
Request a Project Quotation
For wind speed sensor selection, send the following details so Wewin Smart Agri can help match the configuration and coordinate sample evaluation and a batch quotation:
- Required mounting height and local wind range
- Power supply variant and sampling interval
- Pole/bracket requirements, controller and cable distance
- Destination country, estimated order quantity and required delivery schedule
Send your application requirements for configuration review and quotation. Related project information is available in our agricultural sensor range.
