Description

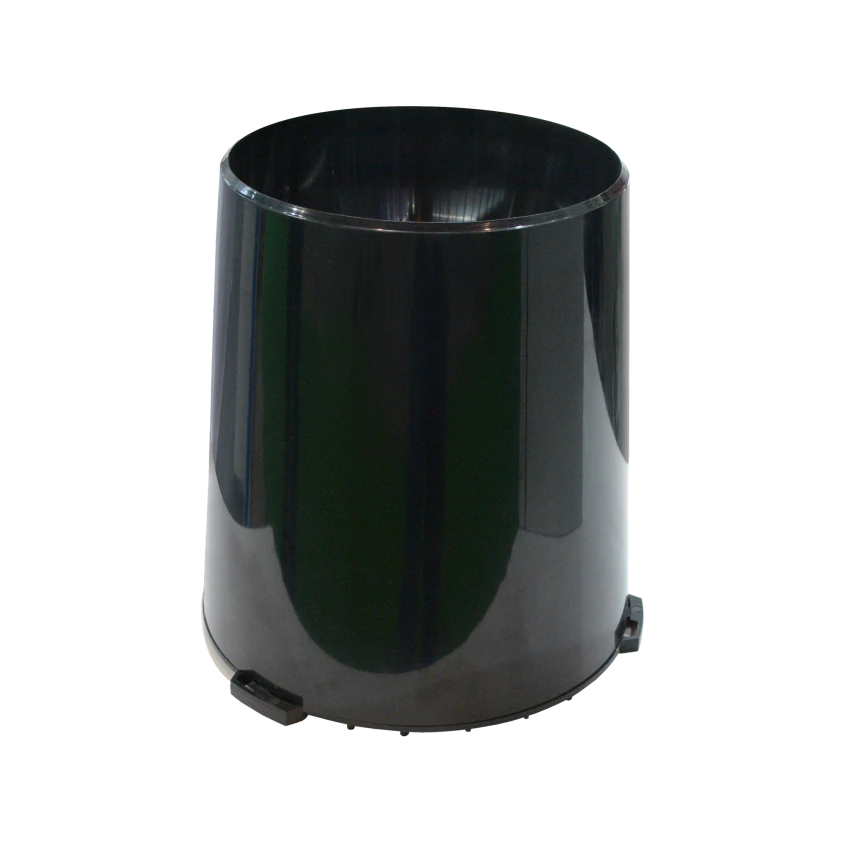

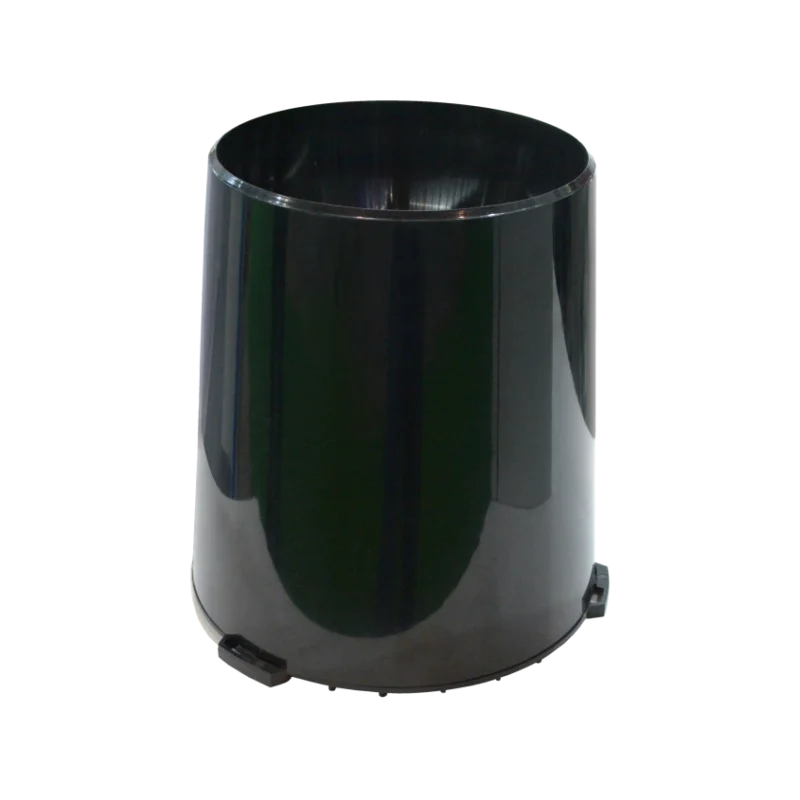

Tipping Bucket Rain Gauge with RS485 Output. Record rainfall for farm weather monitoring and irrigation scheduling with a tipping-bucket measurement configuration.
Specifications
The table describes the listed configuration. Confirm the ordered range, output variant, accessories and acceptance criteria before procurement.
| Parameter | Specification |
|---|---|
| Power | 12–24V DC |
| Measurement intensity range | 0–4 mm/min |
| Resolution | 0.2 mm |
| Operating temperature | −10 to 50°C |
| Catch diameter | 200 mm |
| Height | 280 mm |
| Body options | ABS or stainless steel |
| Output | RS485 Modbus |
Selection and System Integration
Select body material and mounting location, then confirm the cumulative-rainfall register and counter reset behavior. The listed intensity range is a measurement specification; the higher pass-through figure in the sheet is not used as a guaranteed accuracy range.
Installation and Application Notes
Level the collector, avoid overhead obstructions and keep the funnel and bucket mechanism clean. The source accuracy statement is based on indoor artificial rainfall and must not be treated as a guarantee of field performance.
Sample Evaluation
Before a larger order, check the selected sample against the agreed specification using representative operating conditions. Confirm wiring, power, output units and controller communication, then record reference measurements and any configuration changes. Agree on the required documents, packing and replacement components as part of the quotation.
Application FAQ
Is it suitable for snow measurement?
A heating or snow-conversion arrangement is not specified. Confirm a suitable configuration separately for freezing precipitation.
Request a Project Quotation
For tipping bucket rain gauge selection, send the following details so Wewin Smart Agri can help match the configuration and coordinate sample evaluation and a batch quotation:
- Expected rainfall intensity and climate
- Body material and mounting method
- Logger sampling interval, reset behavior and quantity
- Destination country, estimated order quantity and required delivery schedule
Send your application requirements for configuration review and quotation. Related project information is available in our agricultural sensor range.
