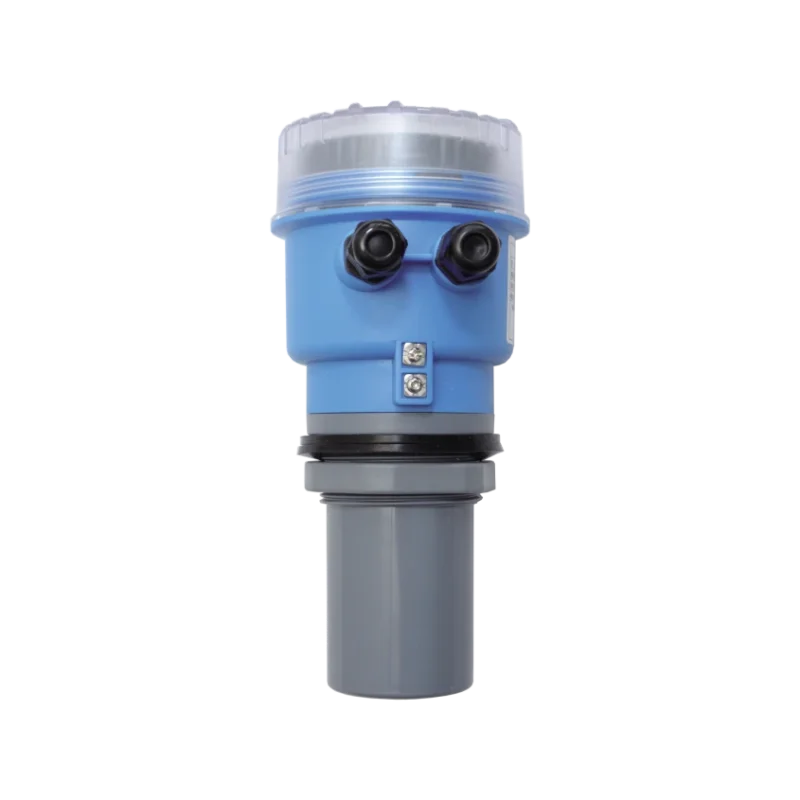

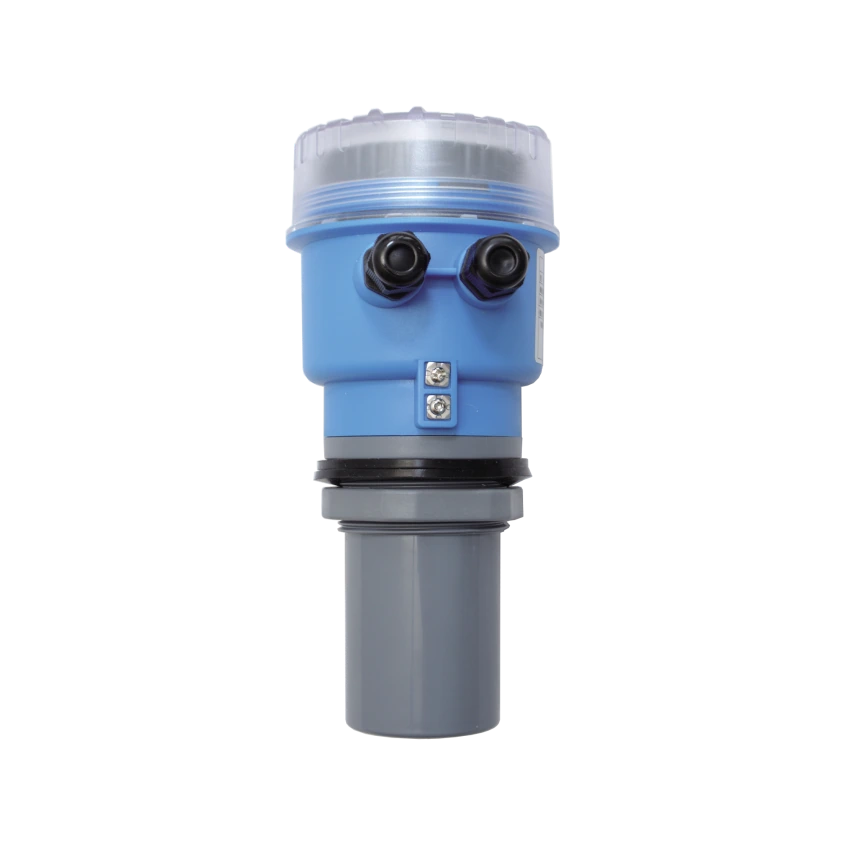

Ultrasonic Tank Level Sensor with 4–20 mA Output. Measure liquid level without an immersed sensing element in suitable irrigation water tanks and storage vessels.
Specifications
The table describes the listed configuration. Confirm the ordered range, output variant, accessories and acceptance criteria before procurement.
| Parameter | Specification |
|---|---|
| Power | 24V DC |
| Listed range envelope | Up to 20 m |
| Blind zone | 0.35–0.5 m, configuration dependent |
| Distance resolution | 1 mm |
| Ambient temperature | −20 to 60°C |
| Process pressure | Atmospheric |
| Output | 4–20 mA |
| Display | LCD |
Selection and System Integration
Allow sufficient distance between the sensor and the highest liquid surface to stay outside the blind zone. Check the beam angle, tank geometry and range of the selected version before designing the mounting position.
Installation and Application Notes
Foam, vapor, condensation, turbulent surfaces and internal tank structures can affect echoes. Confirm suitability for the actual medium and installation. This is an atmospheric-pressure configuration, and RS485 output is not listed in this sheet.
Sample Evaluation
Before a larger order, check the selected sample against the agreed specification using representative operating conditions. Confirm wiring, power, output units and controller communication, then record reference measurements and any configuration changes. Agree on the required documents, packing and replacement components as part of the quotation.
Application FAQ
Is the full measuring range available right up to the probe face?
No. The listed blind zone must be maintained above the highest liquid level.
Request a Project Quotation
For ultrasonic tank level sensor selection, send the following details so Wewin Smart Agri can help match the configuration and coordinate sample evaluation and a batch quotation:
- Tank height, maximum fill level and roof geometry
- Liquid, foam/vapor conditions and mounting opening
- Required range and analog input specifications
- Destination country, estimated order quantity and required delivery schedule
Send your application requirements for configuration review and quotation. Related project information is available in our agricultural sensor range.
