Description

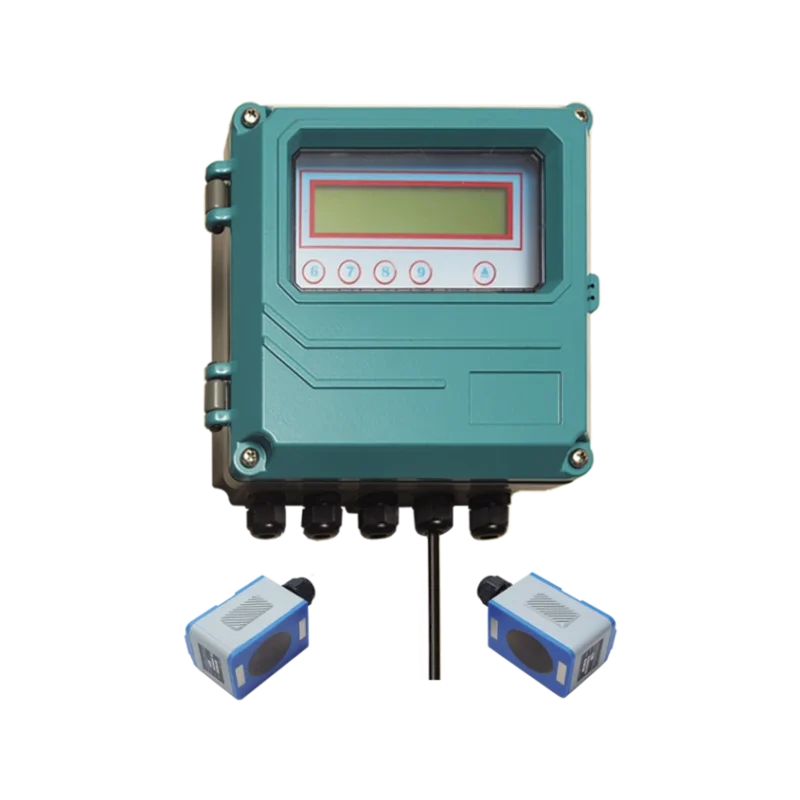

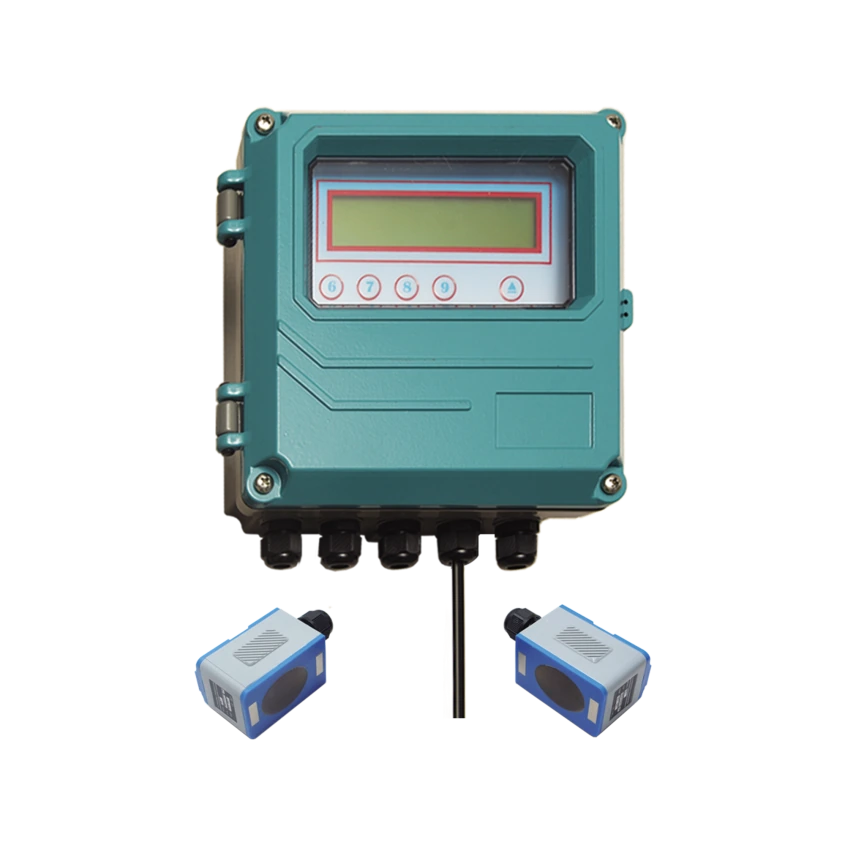

Ultrasonic Irrigation Flow Meter with RS485. Measure water flow in suitable irrigation pipelines using a transit-time ultrasonic configuration.
Specifications
The table describes the listed configuration. Confirm the ordered range, output variant, accessories and acceptance criteria before procurement.
| Parameter | Specification |
|---|---|
| Power | 8–36V, listed |
| Method | Ultrasonic transit time |
| Listed accuracy | 1.5%, application conditions require confirmation |
| Measurement cycle | 500 ms |
| Operating temperature | −10 to 70°C |
| Standard output | RS485 Modbus |
| Optional output | 4–20 mA |
Selection and System Integration
Provide pipe outside diameter, wall thickness, material, liner and water conditions so the transducers and installation arrangement can be selected. Request the supported pipe-size range and required straight lengths for the selected configuration.
Installation and Application Notes
Verify pipe filling, flow profile and acoustic coupling during commissioning. Entrained air and installation errors can affect readings. Billing, custody-transfer or legal metrology approval is not established by the supplied sheet.
Sample Evaluation
Before a larger order, check the selected sample against the agreed specification using representative operating conditions. Confirm wiring, power, output units and controller communication, then record reference measurements and any configuration changes. Agree on the required documents, packing and replacement components as part of the quotation.
Application FAQ
Can it measure an open irrigation canal?
This page describes pipe-flow measurement. An open channel requires a suitable level/flow method and a known hydraulic relationship.
Request a Project Quotation
For ultrasonic irrigation flow meter selection, send the following details so Wewin Smart Agri can help match the configuration and coordinate sample evaluation and a batch quotation:
- Pipe dimensions, material and lining
- Minimum/maximum flow, liquid and air content
- Straight-run availability, output and installation photographs
- Destination country, estimated order quantity and required delivery schedule
Send your application requirements for configuration review and quotation. Related project information is available in our agricultural sensor range.
