Description

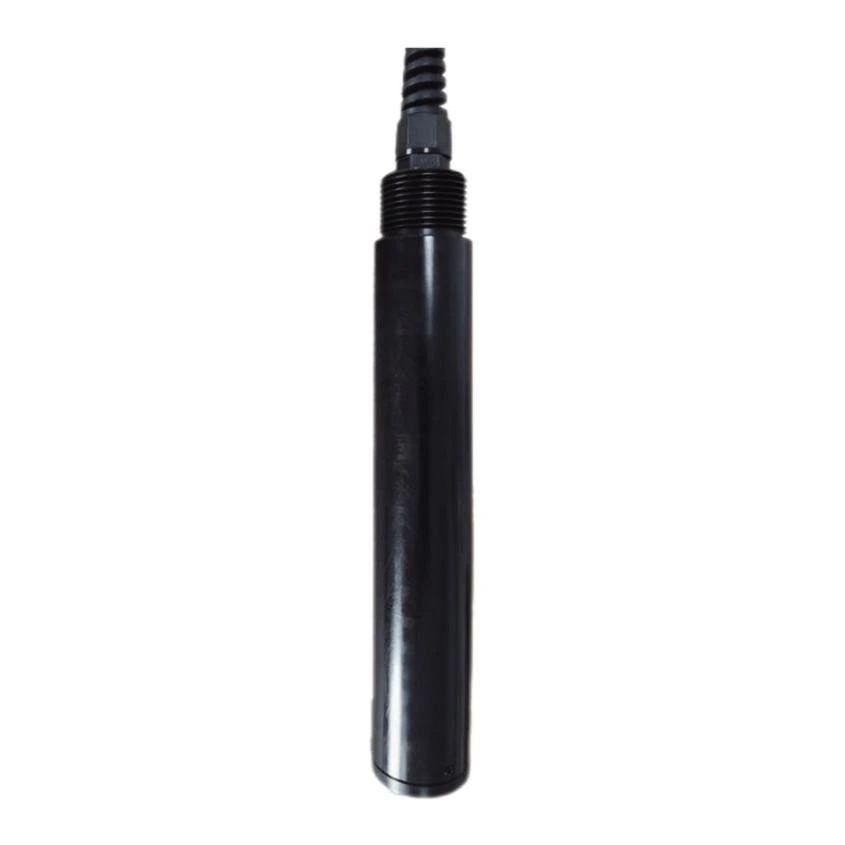

RS485 Turbidity Sensor for Irrigation Water. Monitor turbidity trends in irrigation water sources and recirculating agricultural water systems.
Specifications
The table describes the listed configuration. Confirm the ordered range, output variant, accessories and acceptance criteria before procurement.
| Parameter | Specification |
|---|---|
| Power | 12–24V DC |
| Measurement method | Scattered light |
| Turbidity range | 0–1,000 NTU |
| Resolution | 0.1 NTU |
| Operating conditions | 0–50°C; pressure below 0.3 MPa |
| Calibration | Two-point |
| Output | RS485 Modbus |
Selection and System Integration
Choose a measuring location with a representative sample and cleaning access. Confirm the optical measurement arrangement, reference standard and acceptance criteria for the actual water source.
Installation and Application Notes
Air bubbles, deposits and sample color can influence optical readings. NTU is a turbidity quantity, not a direct suspended-solids concentration in mg/L or a guarantee of pathogen removal. Use additional measurements when assessing filtration performance.
Sample Evaluation
Before a larger order, check the selected sample against the agreed specification using representative operating conditions. Confirm wiring, power, output units and controller communication, then record reference measurements and any configuration changes. Agree on the required documents, packing and replacement components as part of the quotation.
Application FAQ
Can NTU be converted directly to suspended solids?
A site-specific correlation is needed for the actual water and particles. A universal NTU-to-mg/L conversion should not be assumed.
Request a Project Quotation
For irrigation water turbidity sensor selection, send the following details so Wewin Smart Agri can help match the configuration and coordinate sample evaluation and a batch quotation:
- Expected NTU range and water characteristics
- Mounting, sampling and cleaning arrangement
- Calibration standards, controller interface and quantity
- Destination country, estimated order quantity and required delivery schedule
Send your application requirements for configuration review and quotation. Related project information is available in our agricultural sensor range.
