Description

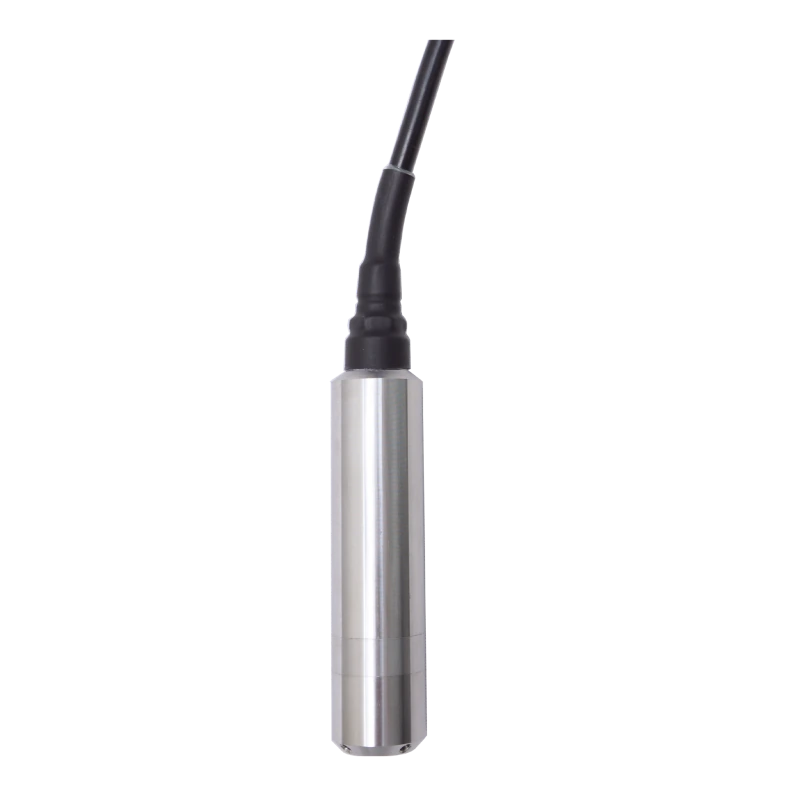

Submersible Water Level Sensor for Irrigation Tanks. Measure water level in storage tanks and reservoirs used by commercial irrigation projects.
Specifications
The table describes the listed configuration. Confirm the ordered range, output variant, accessories and acceptance criteria before procurement.
| Parameter | Specification |
|---|---|
| Power | 12–24V DC |
| Range envelope | 0–20 m, configurable |
| Medium temperature | 0–70°C |
| Listed resolution | 1 cm |
| Suitable listed media | Water and other non-corrosive liquids |
| Output variants | RS485 Modbus or 4–20 mA |
Selection and System Integration
Specify maximum depth, required accuracy and liquid density when selecting a range. Confirm the pressure-reference arrangement and cable construction, including any venting requirements, for the ordered version.
Installation and Application Notes
Secure the probe so it is not pulled by its cable or left in accumulated sediment. Protect cable terminations according to the supplied installation instructions. Suitability for acidic or concentrated fertilizer tanks requires confirmation of wetted-material compatibility.
Sample Evaluation
Before a larger order, check the selected sample against the agreed specification using representative operating conditions. Confirm wiring, power, output units and controller communication, then record reference measurements and any configuration changes. Agree on the required documents, packing and replacement components as part of the quotation.
Application FAQ
Can it be used in any fertilizer tank?
No. The sheet specifies non-corrosive media. Material and chemical compatibility must be confirmed for the actual solution.
Request a Project Quotation
For submersible water level sensor selection, send the following details so Wewin Smart Agri can help match the configuration and coordinate sample evaluation and a batch quotation:
- Maximum and minimum level, tank geometry
- Liquid composition, density and temperature
- Cable length, pressure-reference design and controller input
- Destination country, estimated order quantity and required delivery schedule
Send your application requirements for configuration review and quotation. Related project information is available in our agricultural sensor range.
