Description

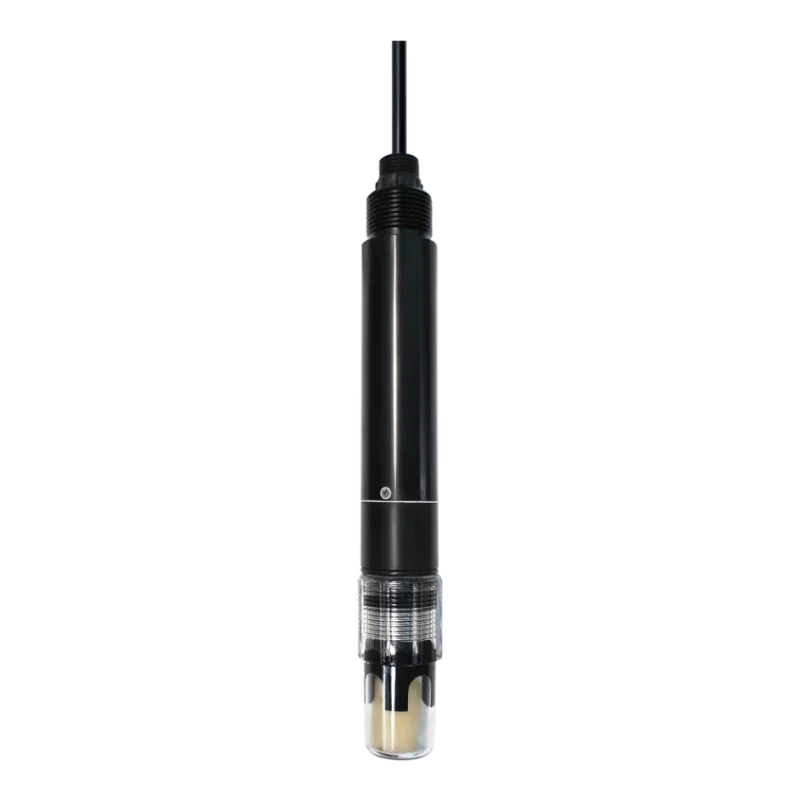

RS485 Water pH Sensor for Fertigation. Measure irrigation-water or nutrient-solution pH for commercial fertigation and hydroponic monitoring.
Specifications
The table describes the listed configuration. Confirm the ordered range, output variant, accessories and acceptance criteria before procurement.
| Parameter | Specification |
|---|---|
| Power | 9–24V DC |
| pH range | 0–14 |
| Resolution | 0.01 pH |
| Listed accuracy | ±0.1 pH |
| Operating conditions | 0–50°C; pressure below 0.3 MPa |
| Output | RS485 Modbus |
Selection and System Integration
Select an electrode and mounting arrangement compatible with the liquid and maintenance access. Request calibration, storage and replacement-electrode instructions. Establish acceptance criteria using suitable buffer solutions and representative process samples.
Installation and Application Notes
Place the measurement point where solution is adequately mixed, away from concentrated chemical injection. Inspect the electrode for deposits and drift. Automated dosing needs a separate controller, dosing equipment and commissioning appropriate to the process.
Sample Evaluation
Before a larger order, check the selected sample against the agreed specification using representative operating conditions. Confirm wiring, power, output units and controller communication, then record reference measurements and any configuration changes. Agree on the required documents, packing and replacement components as part of the quotation.
Application FAQ
Can the sensor dose acid on its own?
No. Its listed output is a measurement signal. A compatible control system must operate and supervise the dosing equipment.
Request a Project Quotation
For water pH sensor selection, send the following details so Wewin Smart Agri can help match the configuration and coordinate sample evaluation and a batch quotation:
- Normal pH and temperature range
- Nutrient chemistry, cleaning chemicals and mounting method
- Controller interface, calibration needs and quantity
- Destination country, estimated order quantity and required delivery schedule
Send your application requirements for configuration review and quotation. Related project information is available in our agricultural sensor range.
