Description

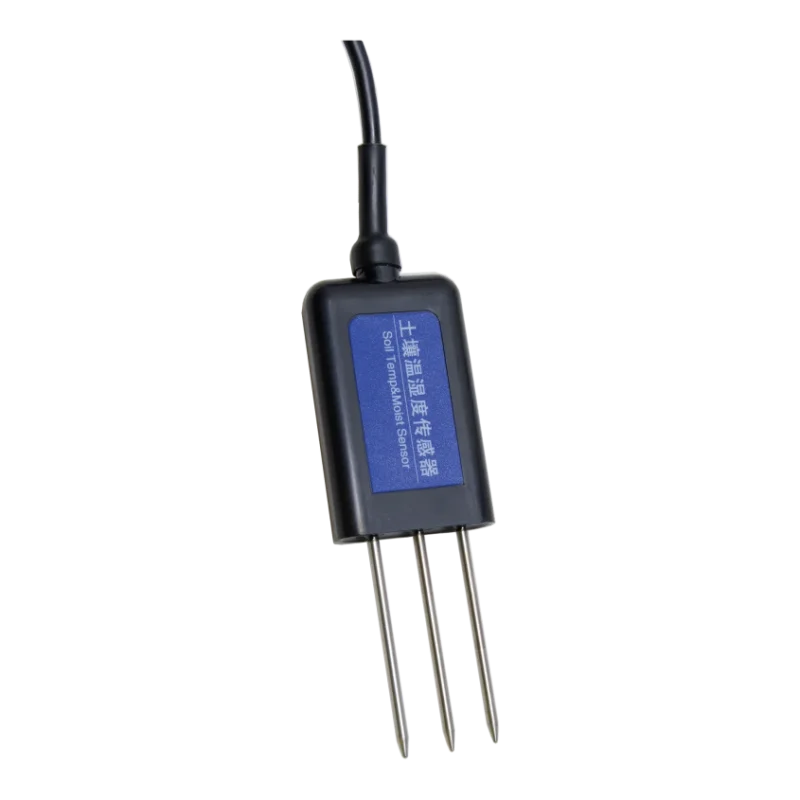

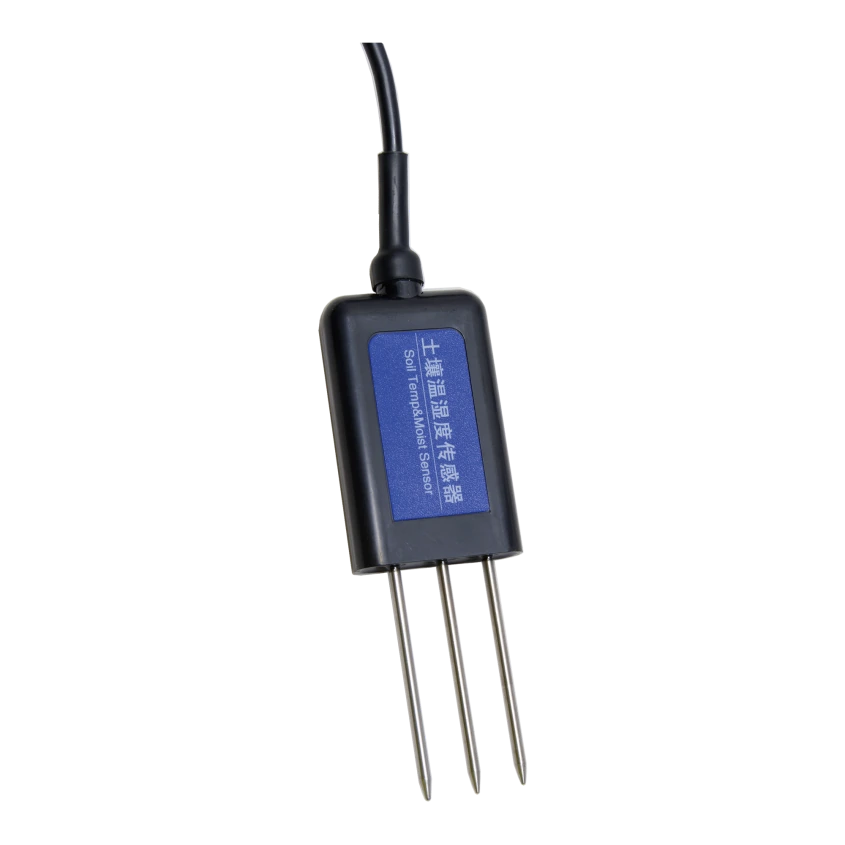

Soil Moisture and Temperature Sensor for Irrigation. Track root-zone moisture and temperature for irrigation scheduling in farms, orchards and commercial nurseries.
Specifications
The table describes the listed configuration. Confirm the ordered range, output variant, accessories and acceptance criteria before procurement.
| Parameter | Specification |
|---|---|
| Power | 9–24V DC |
| Temperature range | −40 to 80°C |
| Temperature resolution | 0.1°C |
| Listed temperature accuracy | ±0.5°C |
| Moisture output range | 0–100% |
| Moisture resolution | 0.1% |
| Output variants | RS485 Modbus or 4–20 mA |
Selection and System Integration
Choose representative locations and depths for each management zone. Establish wet and dry operating thresholds from site observations and sample measurements rather than applying one universal percentage to every crop or soil.
Installation and Application Notes
Install the sensing section with close soil contact and avoid air gaps. Soil texture, density and salinity can affect readings. Verify the moisture calibration and output units for the actual soil or substrate before enabling automatic irrigation.
Sample Evaluation
Before a larger order, check the selected sample against the agreed specification using representative operating conditions. Confirm wiring, power, output units and controller communication, then record reference measurements and any configuration changes. Agree on the required documents, packing and replacement components as part of the quotation.
Application FAQ
Can a displayed percentage be used as a universal irrigation threshold?
No. Confirm the calibration and validate thresholds for the soil, crop and installation depth used in the project.
Request a Project Quotation
For soil moisture and temperature sensor selection, send the following details so Wewin Smart Agri can help match the configuration and coordinate sample evaluation and a batch quotation:
- Crop, soil or substrate type
- Root-zone depth and number of monitoring points
- Irrigation method, controller interface and cable distance
- Destination country, estimated order quantity and required delivery schedule
Send your application requirements for configuration review and quotation. Related project information is available in our agricultural sensor range.
