Description
The IoT automatic pest monitoring system is widely used in orchards, rice fields, vegetable farms, tea plantations, medicinal crop cultivation, greenhouses, and forestry projects.
It provides real-time pest monitoring, AI pest identification, and remote data analysis to support modern smart agriculture and improve crop protection efficiency across different agricultural environments.
Pain Points We Solve
Traditional pest monitoring methods rely heavily on manual inspection and experience, making it difficult to detect pest outbreaks in time. This often leads to delayed prevention, increased pesticide use, higher labor costs, and crop losses.
The system solves these challenges through automatic insect trapping, image collection, AI analysis, and remote monitoring, enabling more efficient and scientific pest management.
Proven Results
By using the IoT automatic pest monitoring system, farms can improve pest monitoring efficiency, reduce manual inspection frequency, lower pesticide waste, and enhance crop protection management.
Combined with AI identification and cloud data analysis, the system helps users make faster and more accurate pest control decisions for stable and sustainable agricultural production.
Key Features
- Automatic insect trapping and monitoring

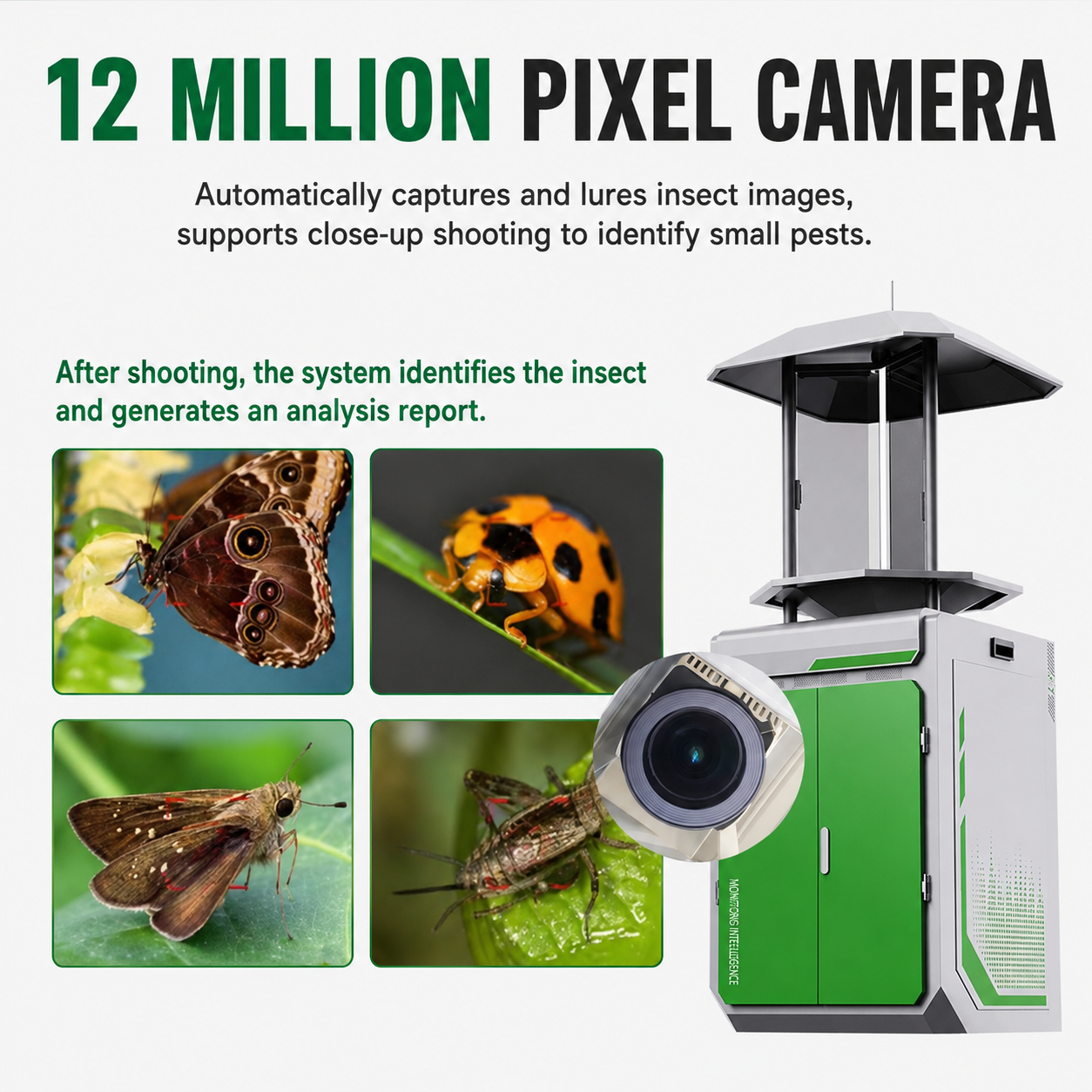

- Built-in HD camera for real-time image capture
- Supports AI pest identification and counting
- Supports identification of 40+ common agricultural pests
- 7-inch touchscreen operation interface
- Automatic image upload and cloud data analysis
- Solar-powered design for outdoor agricultural use

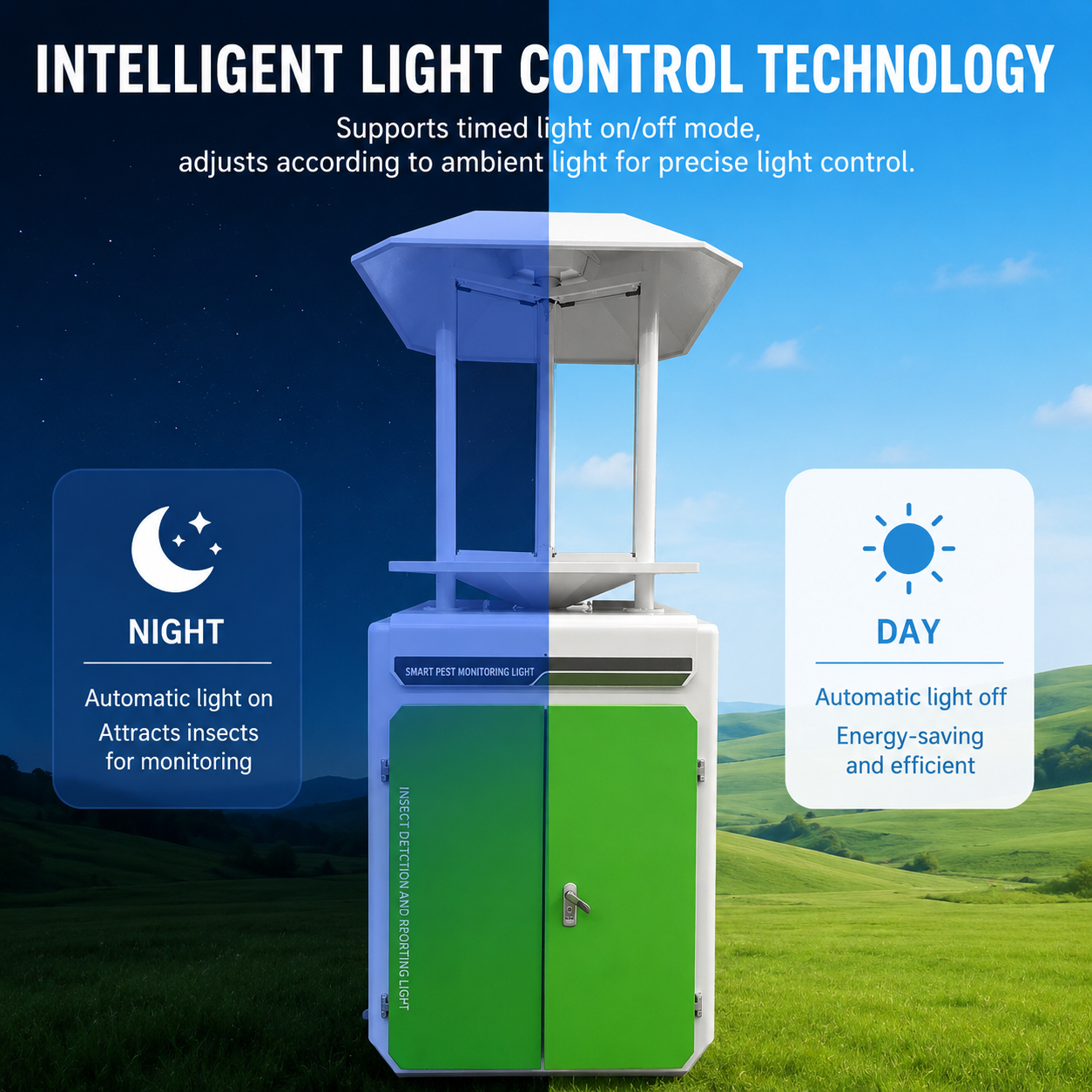

- Intelligent light control with day/night working modes
- Rain sensor protection with automatic shutdown during rainfall

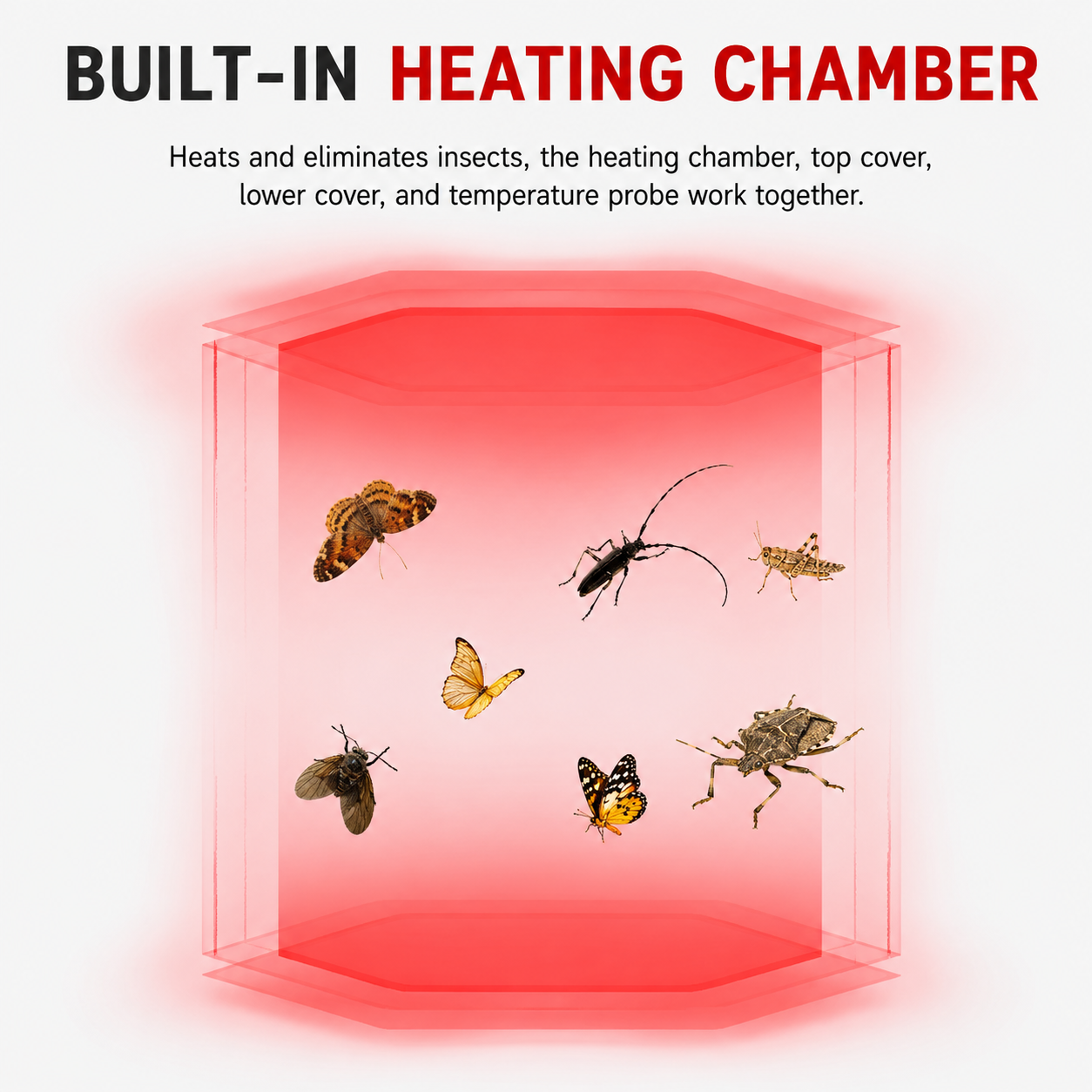

- Built-in heating chamber for insect treatment
- Supports remote monitoring and platform management
- Suitable for unattended 24/7 operation
Technical Specifications
| Item | Specification |
|---|---|
| Power Supply | 220VAC / Solar Power System |
| Power Consumption | Standby <10W, Max <300W |
| Display | 7-inch Touchscreen |
| Camera | 12MP HD Camera |
| Communication | 4G Wireless Communication |
| Data Upload | Automatic Upload via Cloud Platform |
| Pest Identification | Supports AI Identification of 45+ Common Agricultural Pests |
| Light Source | 20W UV Light |
| Pest Control Method | Infrared Heating Treatment |
| Automatic Functions | Light Control, Rain Control, Timing, Vibration, Cleaning, Image Capture, Upload, Drainage |
| GPS Positioning | Positioning Accuracy ≤10m |
| Working Temperature | -20°C to 60°C |
| Working Humidity | 0–100% RH |
| Product Size | 1000 × 670 × 2360 mm |
| Product Weight | Approx. 100 kg |
System Integration

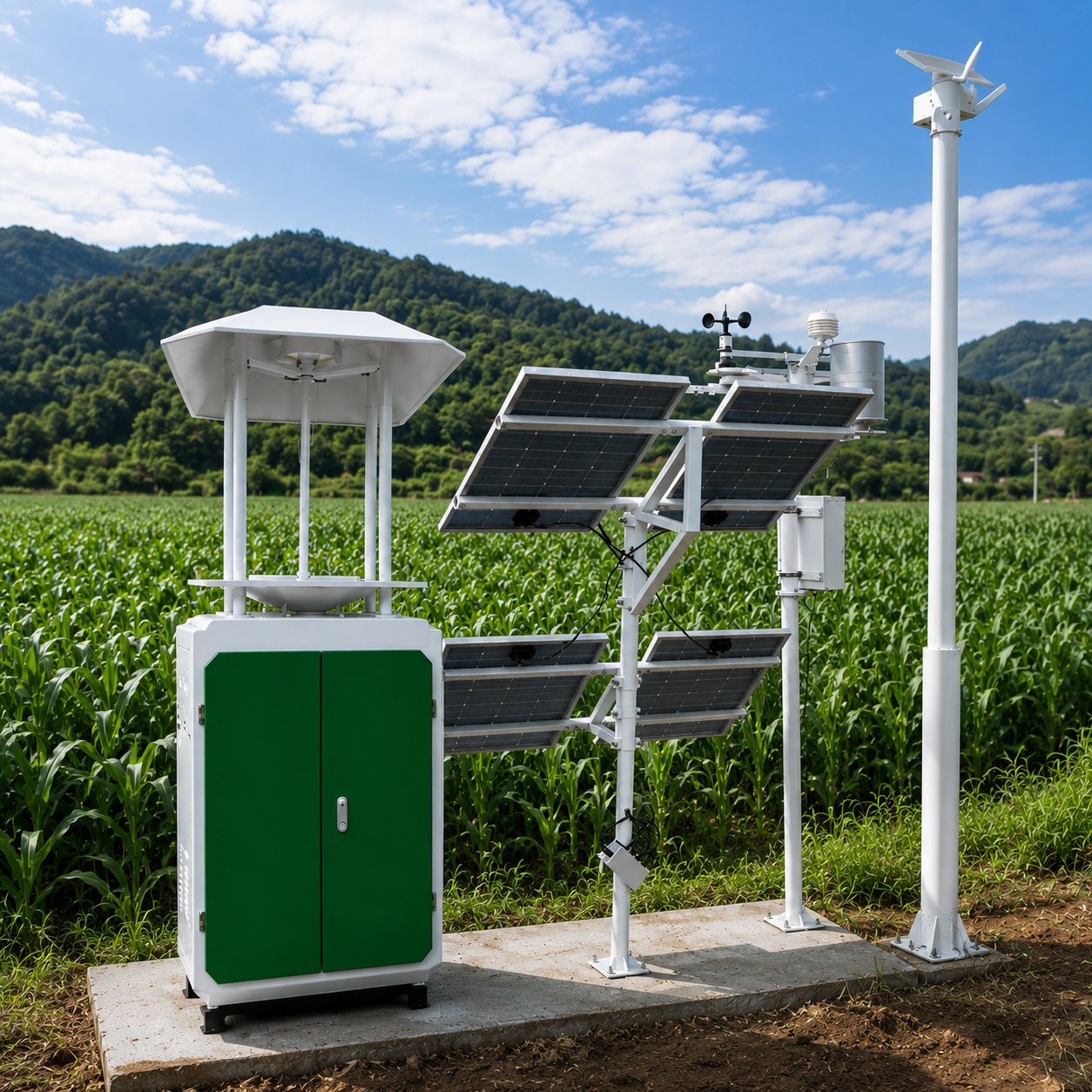

The IoT automatic pest monitoring system can be integrated with agricultural weather stations, environmental sensors, cloud monitoring platforms, and smart farm management systems to build a complete smart agriculture monitoring solution.
The system supports remote data transmission, AI analysis, and real-time monitoring, helping users achieve more efficient and data-driven pest management.
Business Value
- Improve pest monitoring efficiency and response speed
- Reduce manual inspection and labor costs
- Support early warning and scientific pest control
- Reduce crop losses and unnecessary pesticide use
- Enable remote and intelligent agricultural management
- Suitable for orchards, farms, greenhouses, tea plantations, and forestry projects
Need a Smart Pest Monitoring Solution for Your Farm?
Contact us today for product details, technical support, and customized agricultural monitoring solutions.
