Description
RS485 Multi-Channel Irrigation Control Module. Provide configurable switching channels for integration into an irrigation or greenhouse control panel.
Specifications
The table describes the listed configuration. Confirm the ordered range, output variant, accessories and acceptance criteria before procurement.
| Parameter | Specification |
|---|---|
| Control power supply | 12–24V DC |
| Channel options | 4, 8, 12 or 16 |
| Listed device consumption | 1–7W |
| Mounting | DIN rail |
| Display | LCD |
| Communication | RS485 Modbus |
| Contact envelope | Up to 10A, 250V AC per circuit |
| Dimensions, 8-channel | 188 × 66 × 88 mm, listed |
Selection and System Integration

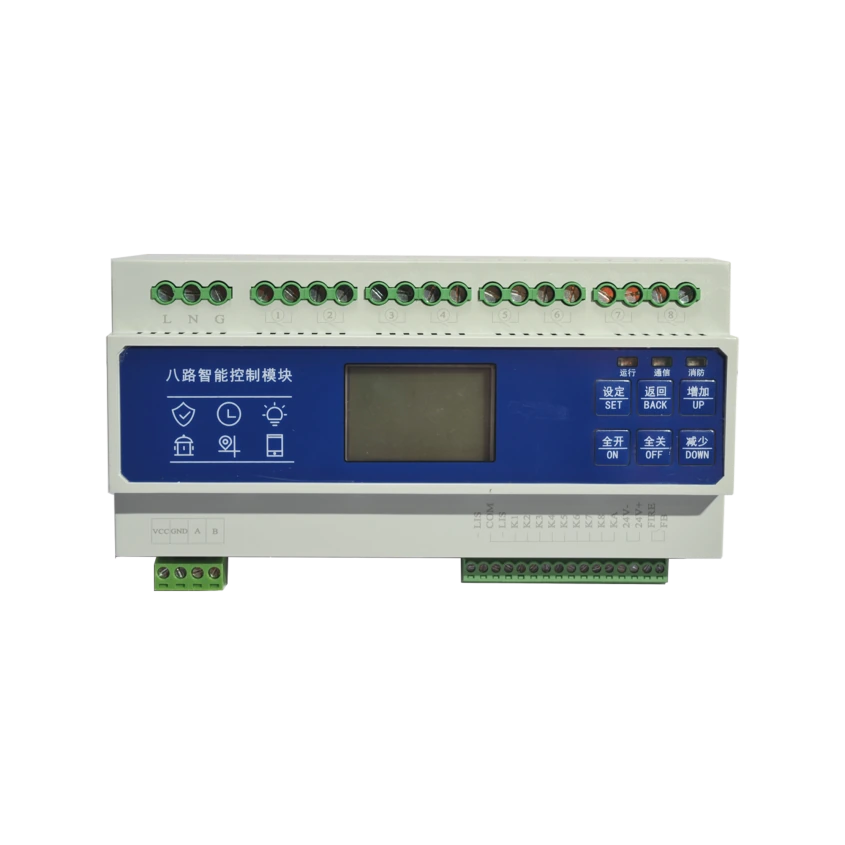

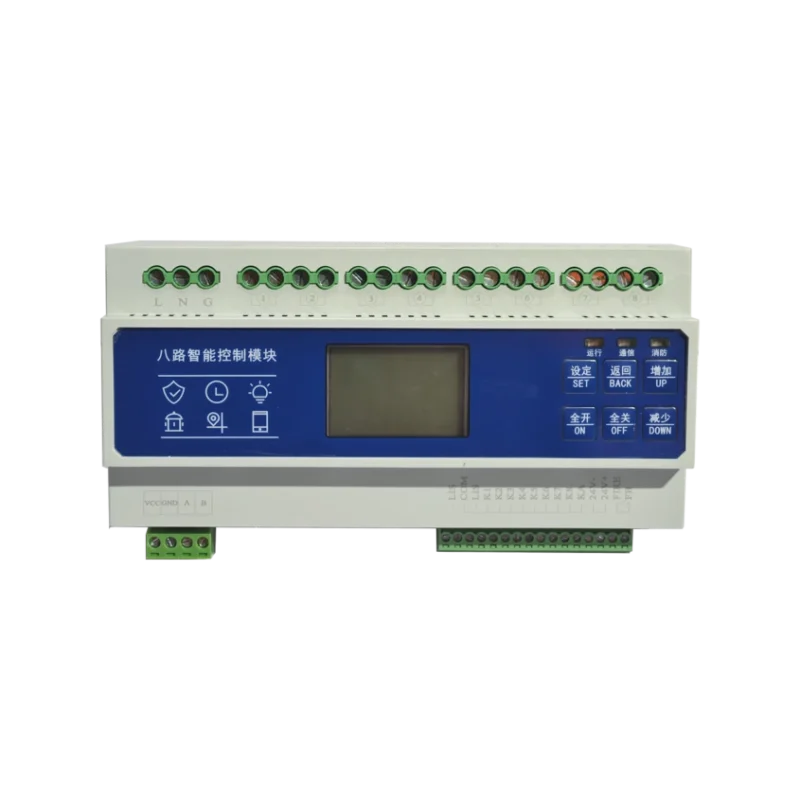

Select channel count, load type, required control logic and cabinet power arrangement. Confirm contact ratings for the actual load, output contact type and wiring diagram. The pictured unit is the eight-channel example; other variants differ.
Installation and Application Notes
The contact-envelope figures do not establish suitability for direct switching of every motor, pump or inductive load. Use appropriate contactors or interface relays where required by the electrical design. Confirm local panel requirements and enclosure protection before installation.
Sample Evaluation
Before a larger order, check the selected sample against the agreed specification using representative operating conditions. Confirm wiring, power, output units and controller communication, then record reference measurements and any configuration changes. Agree on the required documents, packing and replacement components as part of the quotation.
Application FAQ
Can it directly switch an irrigation pump?
Only where the specific load and switching category are confirmed suitable. Larger or inductive loads may require a correctly rated contactor and protection arrangement.
Request a Project Quotation
For irrigation control module selection, send the following details so Wewin Smart Agri can help match the configuration and coordinate sample evaluation and a batch quotation:
- Channel count and load schedule
- Voltage/current, inductive loads and switching frequency
- Controller register map, fail-state requirements and panel layout
- Destination country, estimated order quantity and required delivery schedule
Send your application requirements for configuration review and quotation. Related project information is available in our agricultural sensor range.
