Description

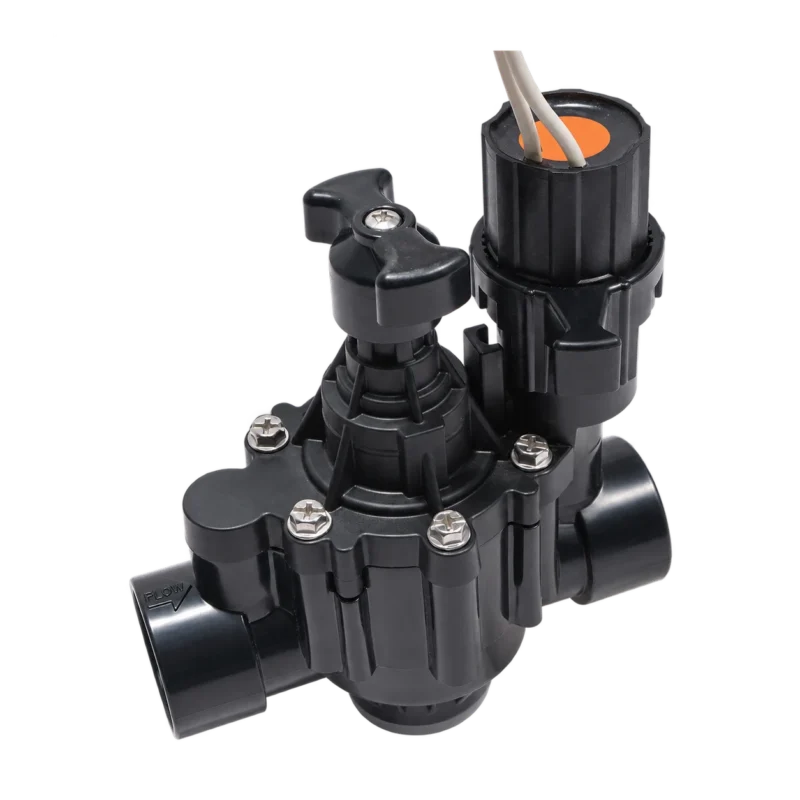

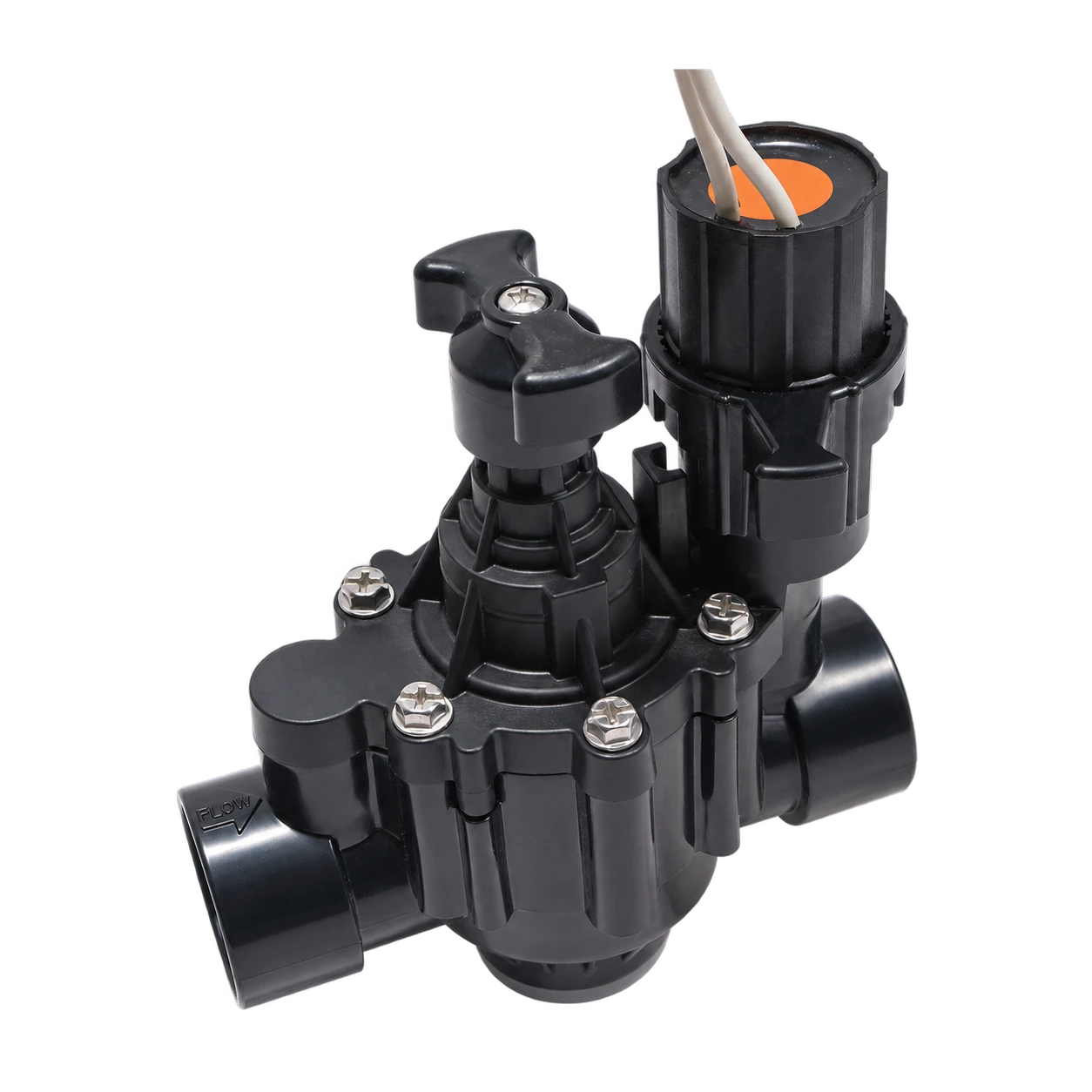

24V AC Irrigation Solenoid Valve. Switch irrigation zones from a compatible 24V AC controller in commercial drip and sprinkler installations.
Specifications
The table describes the listed configuration. Confirm the ordered range, output variant, accessories and acceptance criteria before procurement.
| Parameter | Specification |
|---|---|
| Coil supply | 24V AC, 50/60Hz |
| Operating pressure | 0.10–1.04 MPa |
| Listed flow envelope | 0.45–34.05 m³/h, size dependent |
| Water temperature | Up to 43°C |
| Ambient temperature | Up to 52°C |
| Body | High-strength PVC |
Selection and System Integration
Match valve size to design flow and allowable pressure loss. The listed flow envelope covers variants; request the flow curve and minimum differential pressure for the ordered size. Check filtration, pipe connection and the controller transformer capacity.
Installation and Application Notes
This is an AC solenoid configuration. Do not connect it directly to a DC latching valve output. Use it for compatible irrigation water, with inlet filtration and an installation arrangement that permits servicing.
Sample Evaluation
Before a larger order, check the selected sample against the agreed specification using representative operating conditions. Confirm wiring, power, output units and controller communication, then record reference measurements and any configuration changes. Agree on the required documents, packing and replacement components as part of the quotation.
Application FAQ
Can I use it with a solar valve controller?
Only if the controller provides the required 24V AC output and sufficient starting current. Compatibility with a DC or pulse-latching output must not be assumed.
Request a Project Quotation
For irrigation solenoid valve selection, send the following details so Wewin Smart Agri can help match the configuration and coordinate sample evaluation and a batch quotation:
- Pipe diameter and thread standard
- Minimum/maximum pressure and zone flow
- Controller model, output voltage and simultaneous valve count
- Destination country, estimated order quantity and required delivery schedule
Send your application requirements for configuration review and quotation. Related project information is available in our agricultural sensor range.
